LM Guideways
LM Guideways Supplier
About LM Guideways

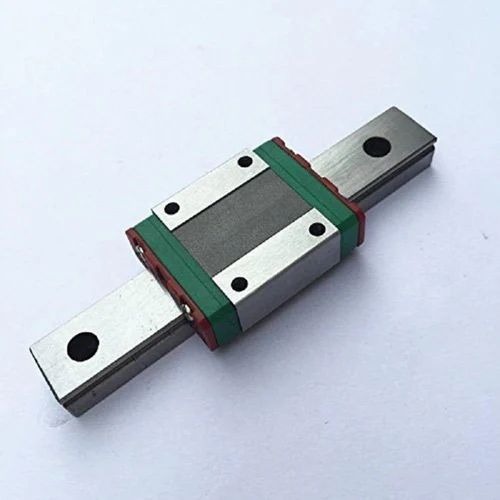

LM Guideways (Linear Motion Guideways) are precision mechanical components designed to provide smooth, accurate, and controlled linear motion in industrial automation systems. They consist of a rail and a block with recirculating ball bearings that ensure minimal friction and high rigidity. These guideways are ideal for applications requiring high precision, low noise, and long life. H K Sales is a trusted LM Guideways supplier catering to industries across Kolkata, West Bengal, Odisha, Bihar, Jharkhand, Chhattisgarh, and Assam. We provide high-quality linear motion solutions from globally recognized brands to ensure accuracy, durability, and superior performance in every application.
Key Features of LM Guideways
- High Precision:Provides accurate linear motion for demanding applications.
- Smooth Operation:Equipped with recirculating ball design for low friction and smooth travel.
- High Load Capacity:Can withstand both radial and lateral loads effectively.
- Long Service Life:Made from high-grade alloy steel with advanced surface treatment for corrosion resistance.
- Low Noise & Vibration:Ensures quiet operation ideal for precision machinery.
- Easy Installation & Maintenance:Compact design allows for easy mounting and alignment.
Types of LM Guideways Available
- Ball Type LM Guideways– Suitable for high precision and light-to-medium loads.
- Roller Type LM Guideways– Designed for heavy-duty applications requiring extra rigidity.
- Miniature LM Guideways– Ideal for compact systems and automation equipment.
- Wide Rail LM Guideways– Used where higher moment loads are involved.
- Flange Type LM Guideways– Designed for machines with limited space and compact designs.
Top Benefits of Choosing H K Sales LM Guideways
- Sourced from top international brandsensuring reliability and precision.
- Large stock availabilitywith fast delivery across Eastern India.
- Supported by expert technical assistanceand after-sales service.
- Competitive pricingwithout compromising on quality.
- Proven supplier for automation, robotics, CNC, and packaging industries.
Applications of LM Guideways
- CNC Machines & Machining Centers
- Automation & Robotics Systems
- Semiconductor Manufacturing Equipment
- Measuring Instruments
- Packaging and Printing Machinery
- Medical Equipment
- Pick and Place Units
Technical Chart – LM Guideways
Model No. | Rail Width (mm) | Block Length (mm) | Load Capacity (C, kN) | Static Load (Co, kN) | Accuracy Class | Weight (kg/m) |
HGH15CA | 15 | 34 | 11.3 | 21.5 | C5 | 0.75 |
HGH20CA | 20 | 44 | 18.1 | 28.8 | C5 | 1.10 |
HGH25CA | 25 | 48 | 26.2 | 40.3 | C5 | 1.70 |
HGH30CA | 30 | 63 | 35.4 | 52.9 | C5 | 2.50 |
HGH35CA | 35 | 70 | 50.0 | 76.0 | C5 | 3.30 |
HGH45CA | 45 | 86 | 73.0 | 110.0 | C5 | 4.70 |
HGH55CA | 55 | 100 | 100.0 | 160.0 | C5 | 6.20 |
Trusted LM Guideways Supplier in Eastern India
At H K Sales, we are recognized as one of the leading LM Guideways suppliers in Kolkata, West Bengal, Odisha, Bihar, Jharkhand, Chhattisgarh, and Assam. Our strong distribution network and customer-centric approach ensure quick response and on-time delivery. Choose H K Sales for reliable, high-performance LM Guideways that deliver unmatched precision, durability, and efficiency for your linear motion systems.
